The scaffold anchoring with metric thread M 12.

Scaffold eyebolt FI G 12

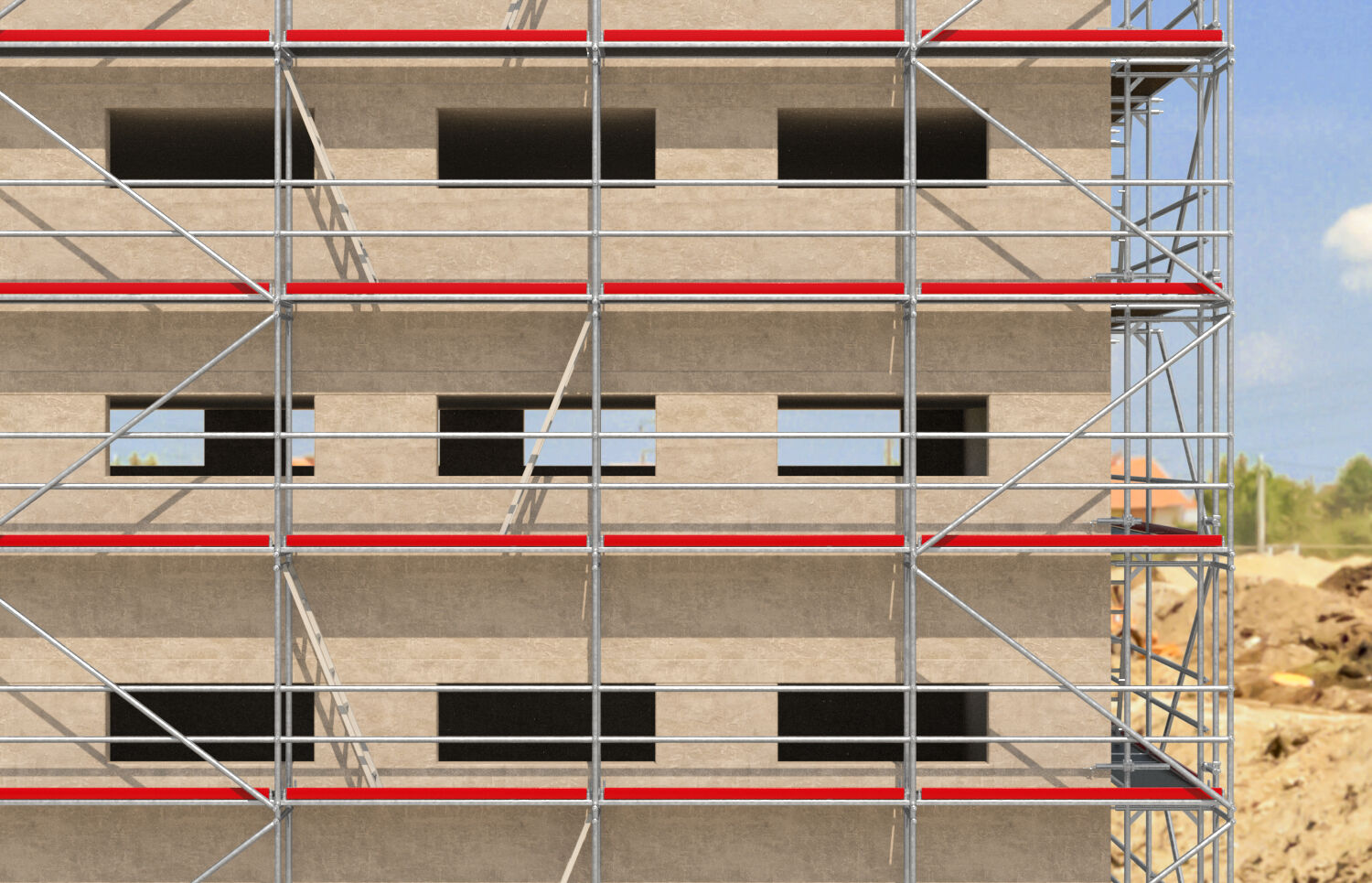

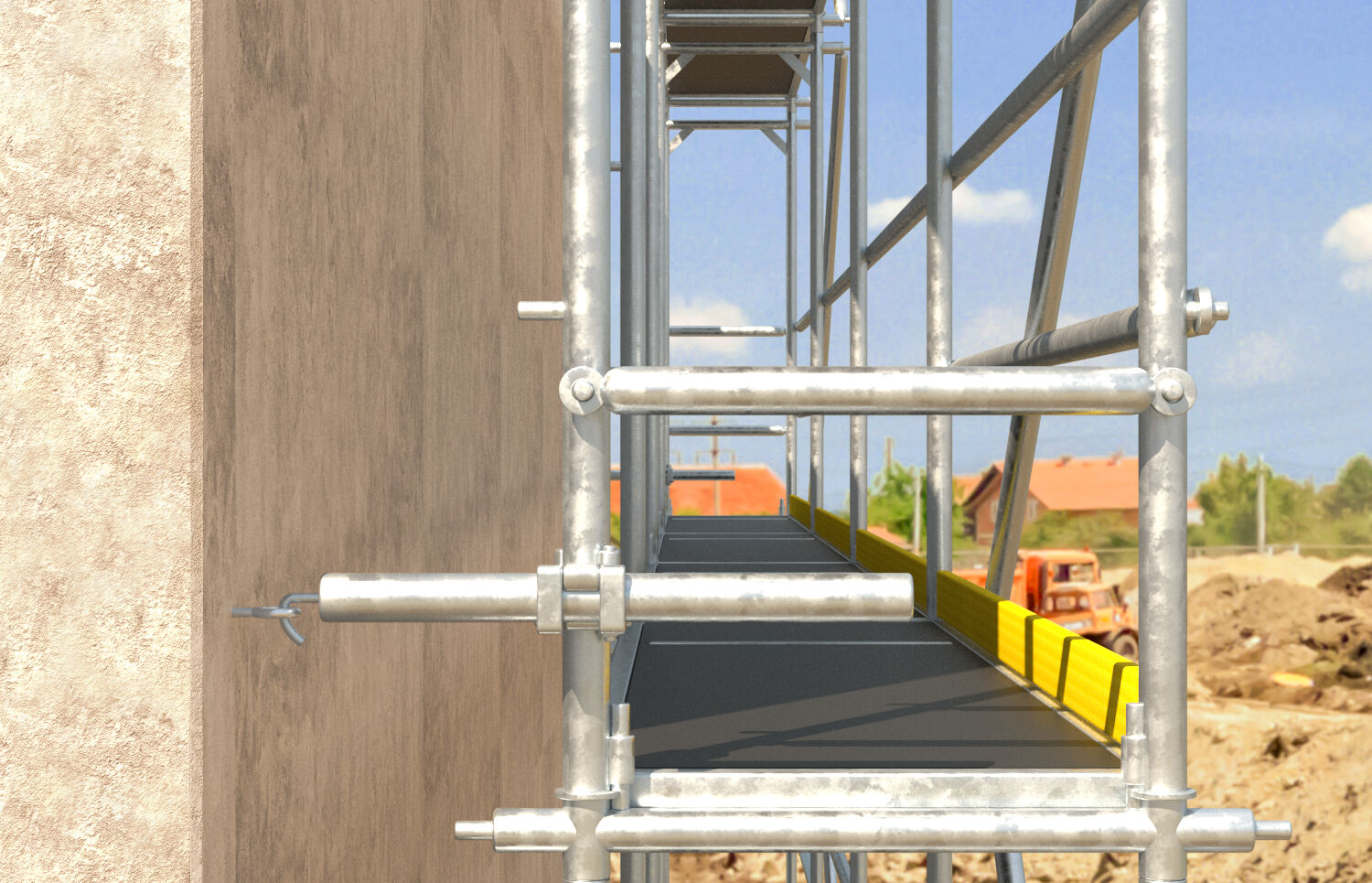

The fischer scaffold eyebolt FI G can be used with various officially approved fischer internal thread anchors. This enables the repeat assembly and disassembly of the same fastening point with no restriction of the retention value. In concrete, we recommend a combination of the injection mortars FIS V Plus and FIS EM Plus along with the internal threaded anchor RG 18 x 125 M 12 I and the ZYKON undercut anchor FZA 22 x 100 M 12 I. In masonry, the scaffold eyebolt is safely secured with the fischer injection mortar FIS V Plus, the anchor sleeve FIS H 20 x 85 K, and the internal threaded socket FIS E 15 x 85 M 12. The system is ideal for securing façade scaffolds, tensioning ropes, and trellises.
Product variantsDownload of image data

Product variants

Filter
Filter
2 Product variant (s)
Thread
Thread length
Shaft diameter
Max. thickness of non-bearing layer
Eye-ø
Packaging
Viewed 2 of 2 variant (s)

The advantages / Product description

Application and approval

Assembly instruction
