DuoXpand
Frame fixing with two anchorage depths for all building materials.
duocpand 3840

Anchor with a smart bite

The fischer frame fixing DuoXpand is approved for multiple fixings of non-structural systems in concrete, masonry and aerated concrete with the fischer safety screw. It guarantees a safe hold in all building materials classes. Thanks to its special lamella geometry and material combination in particular, the plug expands gently and reliably in the respective building material. The pre-mounted safety screw is matched perfectly to the plug and saves time during installation.

The advantages at a glance

Winner of the Red Dot Design Award & Focus Silver

The Red Dot Design Award is one of the world' s largest design competitions and annually selects the best designs in three different disciplines.

With its innovative and functional design, the DuoXpand is awarded the Red Dot Product Design 2022.

The fischer group of companies has received the Focus Silver award for the DuoXpand. The Design Center Baden-Württemberg recognized the "exceptional quality" of the frame fixing solution.

Duoxpand
Duoxpand
Duoxpand
fischer DuoXpand
Anchor with a smart bite

The DuoXpand at a glance




  1. The clever combination of design and material bites perfectly into all building materials for universal use.
  2. The special lamella geometry expands gently in the building material and avoids fractures in porous building materials. Thus, anchoring close to the edge is possible without any problems.
  3. The grey main body made of high quality nylon provides strong hold, while the flexible, red material component ensures optimal spreading.
  4. Countersunk head screw and conically shaped plug rim are especially suited for wooden constructions.

  1. The ribs on the sides prevent rotation in the drill hole for a functionally safe assembly.
  2. The expansion element with two anchorage depths enables flexible use in all building material classes according to ETA.
  3. Two additional anchorage depths of 140 and 160 mm allow safe anchoring in perforated materials with large cavities.
  4. The wide plug rim avoids contact corrosion and seals the drill hole for a permanently secure fixing.
  5. The FUS version with hexagon head screw and moulded washer is perfect for metal constructions.

Wood applications

Duoxpand

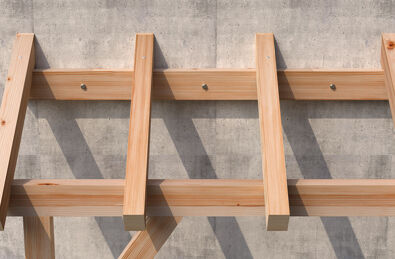

Timber substructures

Duoxpand

Wood substructures

design award

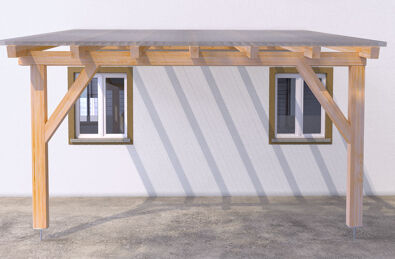

Carports

Metal applications

Duoxpand

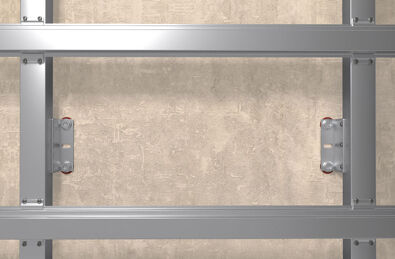

Facade substructures

Duoxpand

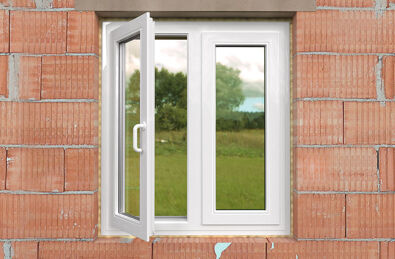

Window frames

Duoxpand

Consoles
