Art.-No. 512625

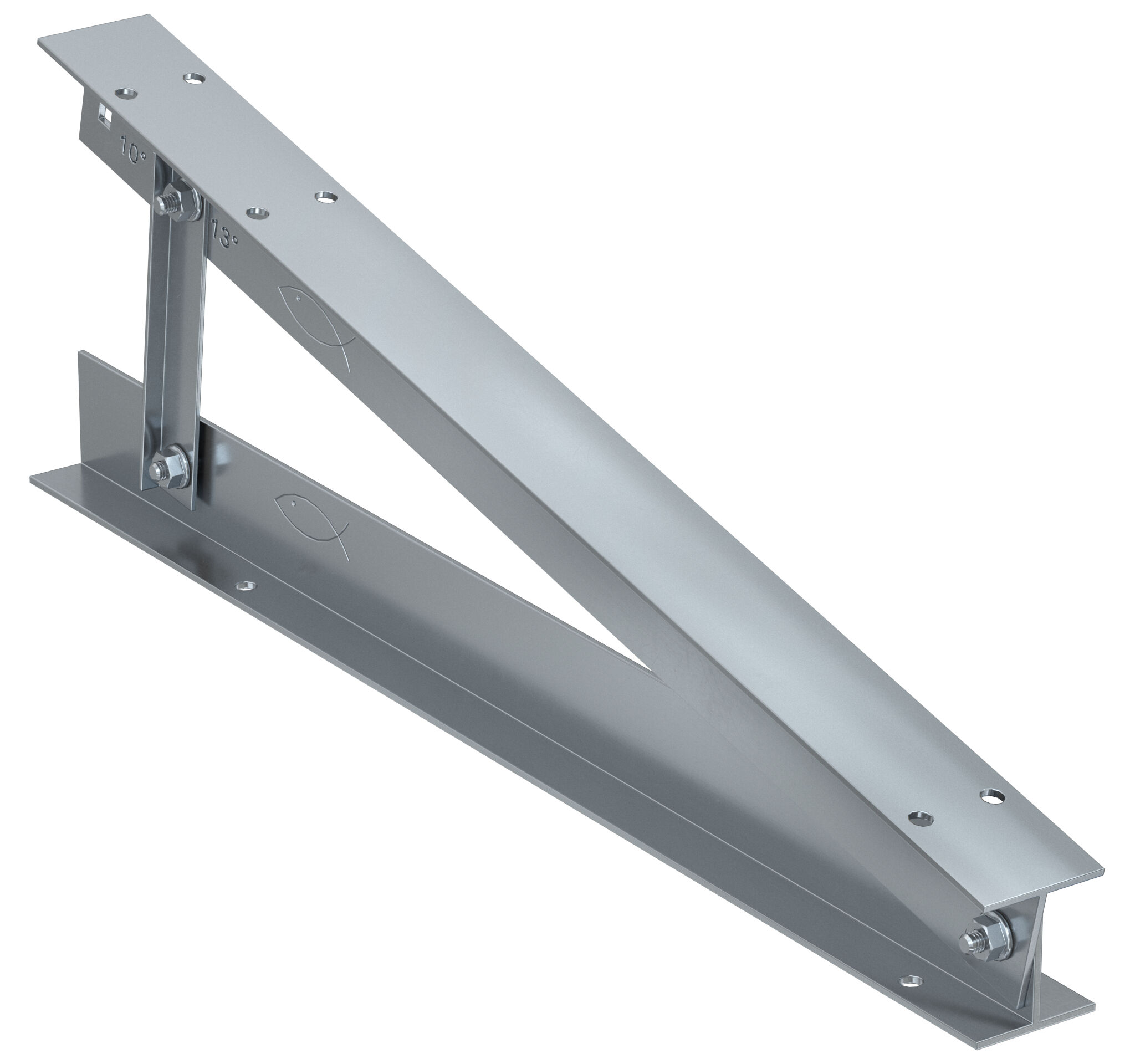

fischer Triangular frame STFS 10° - 13°

Top Features

Adjustable inclination 10° and 13°
Compact for roofs with limited perimeter shielding
Made of AW 6063/6060 T66 aluminium

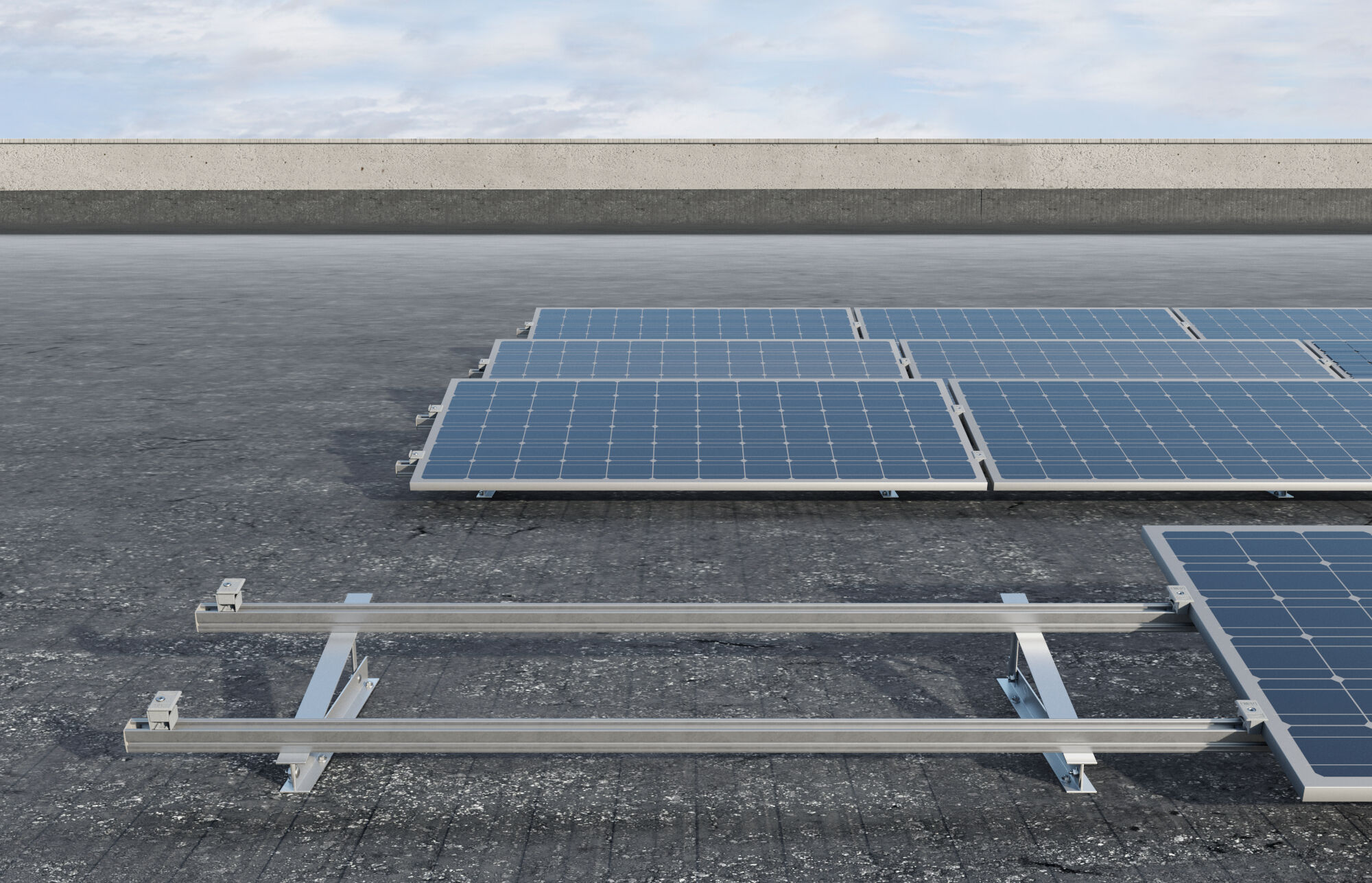

Triangular frame for the installation of PV panels in a lowered position on flat roofs. Suitable for installing panels with landscape layout.

Advantages

The STFS triangular frame is supplied pre-assembled and the accessories for connecting to the Solar rails are included in the package.
Moving the diagonal connection between two positions makes it possible to obtain two different angles (10° and 13°).
The installation with the panels arranged horizontally is only 30 cm high.

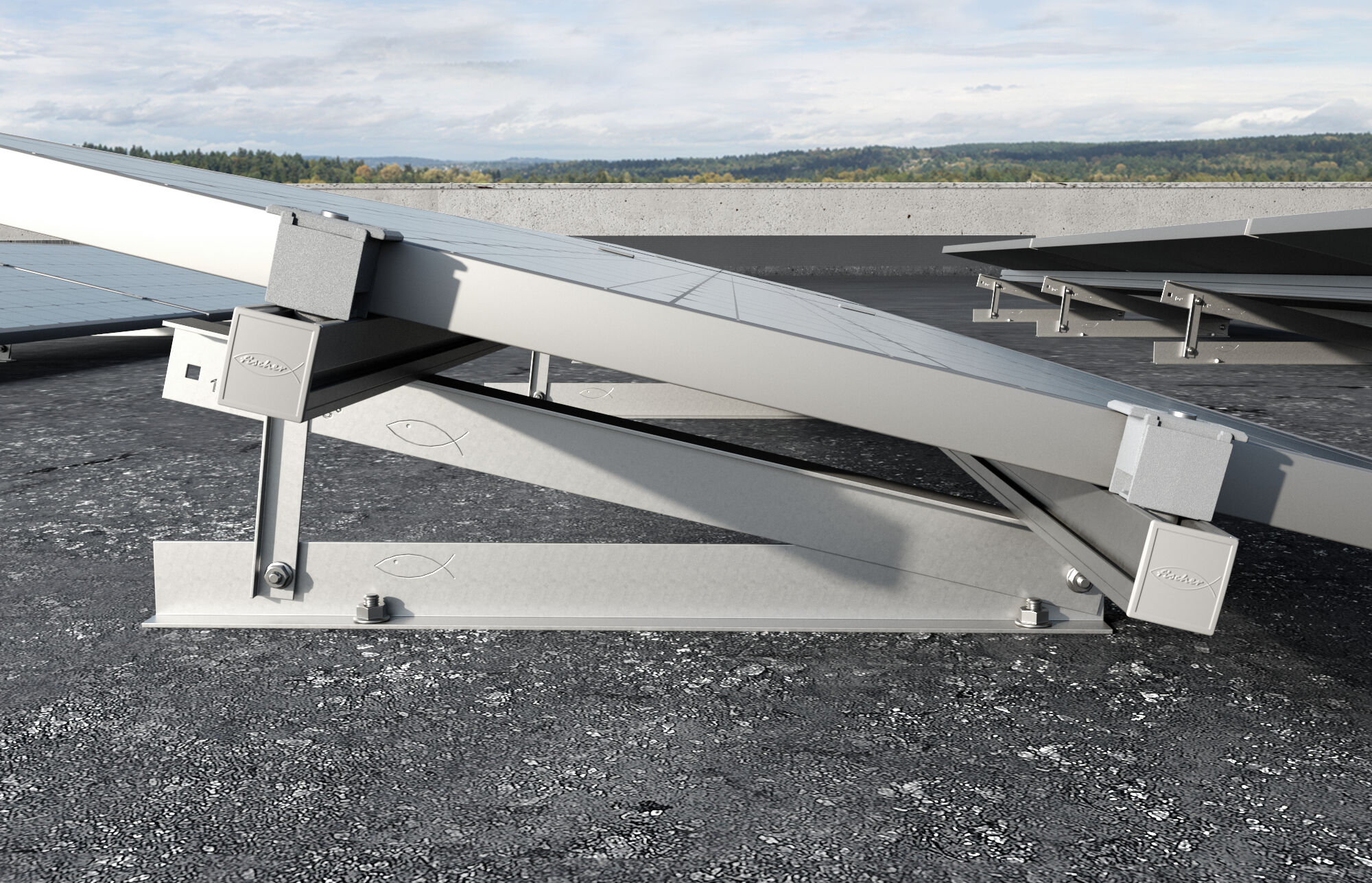

STFS is the compact triangular frame for installing photovoltaic systems in a lowered position on flat roofs with panels arranged in a landscape layout. Particularly suitable for minimizing the visual impact of the system and the action of the wind in the case of roofs with perimeter masonry of limited height.

Properties

Triangular structure in AW 6063/6060 T66 aluminium in accordance with EN 755-2:2013.
A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2009.

Functionality

Determine the centre distance of the triangular frames according to the snow and wind loads in the installation area in accordance with national standards.
Identify the position of the triangular frames according to the load-bearing structure and layout of the system.
Fix the base of the triangular frame with the appropriate anchor depending on the building material of the substrate.
Connect the Solar rail to the diagonal of the triangular frame using the screws supplied in the package.

Mounting Strip 1 Picture

1 / 5

Installation torque ( T_inst )	10 Nm
Width across nut	13 mm
Weight	1 kg
Contents	5x STFS triangles 20x RHS M8 x 20 A2 hammer head screws 20x MU F M8 A2 flanged nuts
Amount	5 pcs.
GTIN (EAN-Code)	8001132022450
