Art.-No. 536782

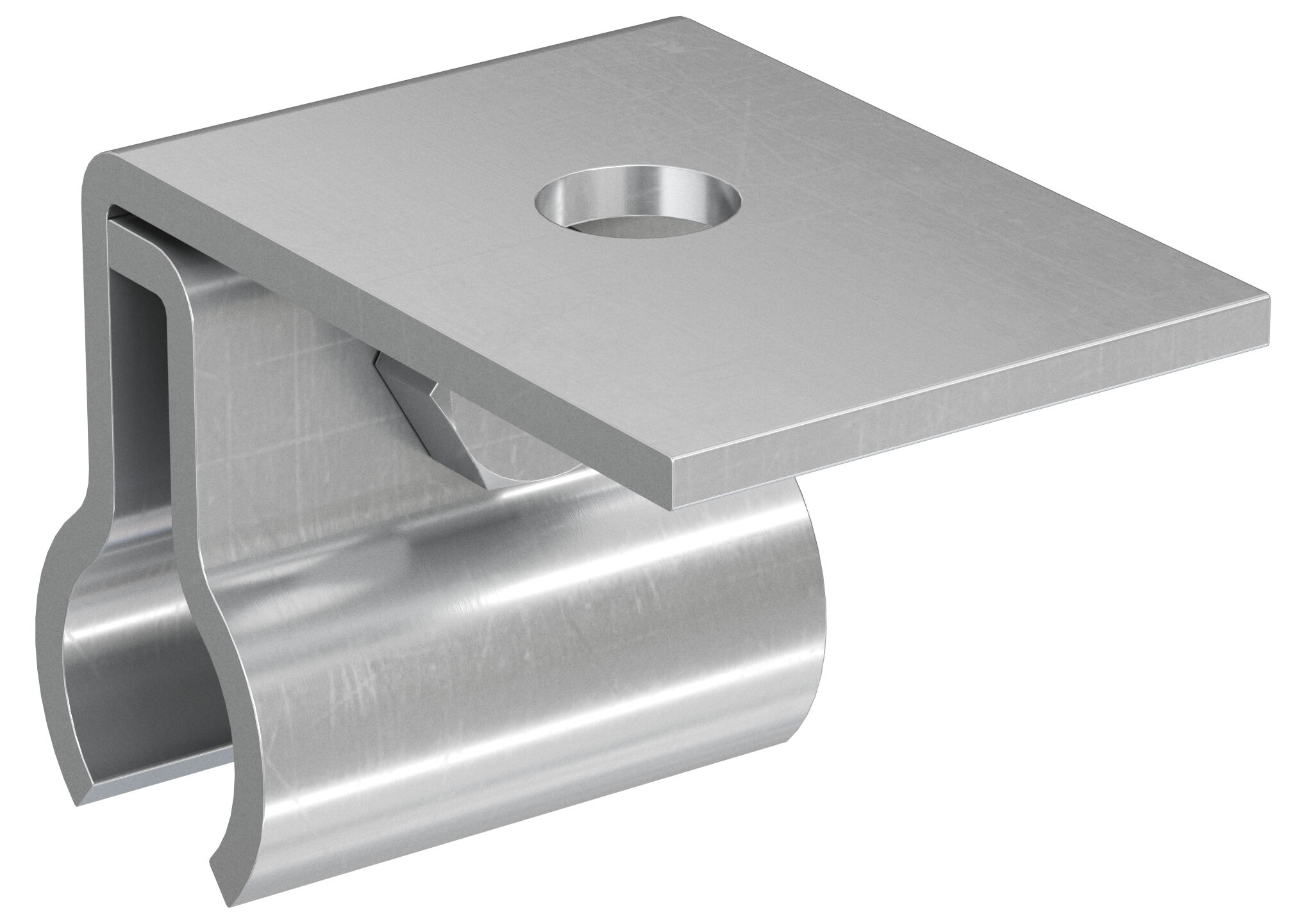

fischer roof hook DLAK A2 stainless steel A2

Top Features

Bracket for Kalzip standing seam
one-screw fixing
Made of AISI 304 stainless steel

Stainless steel bracket for fixing structures for photovoltaic systems on Kalzip standing seam panels.

Advantages

The hook is supplied pre-assembled and the accessories for connecting to the Solar rails are included in the package.
The pre-assembled round-headed bolts with square neck enable a quick installation.

DLAK is the AISI 304 stainless steel hook for building structures for photovoltaic systems on Kalzip standing seam roofs. Screws for connection to the rail need to be ordered seperately.

Properties

Bracket in stainless steel X5CrNi 18-10 in accordance with EN 10088-2:2005.
Class A2-70 stainless steel bolts in accordance with EN ISO 3506-1/2:2010.

Functionality

Determine the centre distance of the hooks according to the snow and wind loads in the installation area.
Identify the position of the hooks according to the load-bearing structure and the layout of the system.
Position the hooks and tighten the screws to the tightening torque.
Before installation, it is recommended to place a sheet of CG INT butyl adhesive tape between the roof panel and the DLAK hooks.

Mounting Strip 1 Picture

1 / 5

1
2
3
4
5

Installation torque ( T_inst )	10 Nm
Width across nut	13 mm
Amount	50 pcs.
GTIN (EAN-Code)	8001132056684

fischer roof hook DLAK A2 stainless steel A2
