Art.-No. 536713

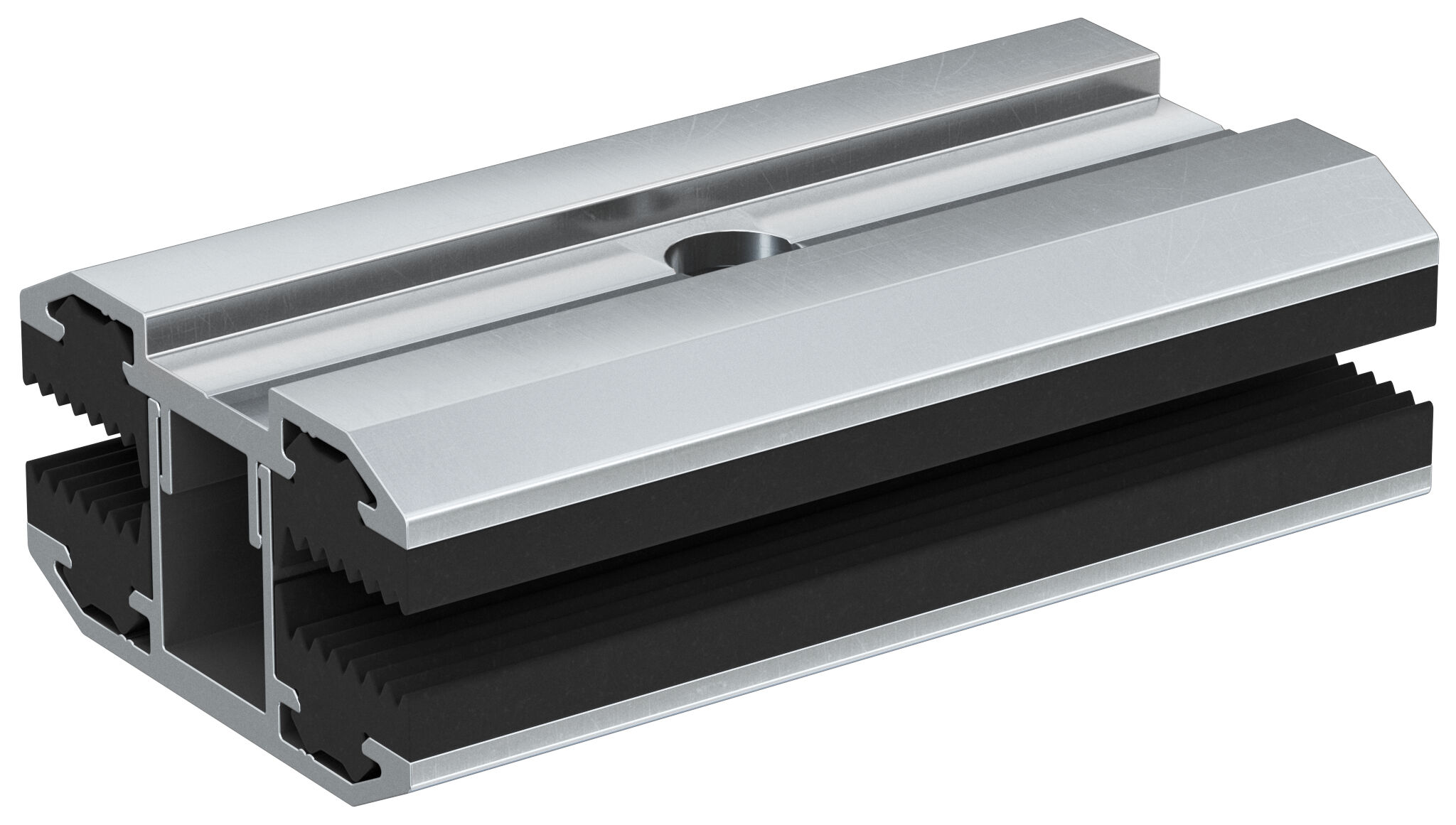

Non-assembled central clamp MCG 120 5,0-6,2

Top Features

Non-assembled central clamp for frameless PV panels
Compatible with Allen screws and FCN AL nut
Made of AW 6060 T66 aluminium

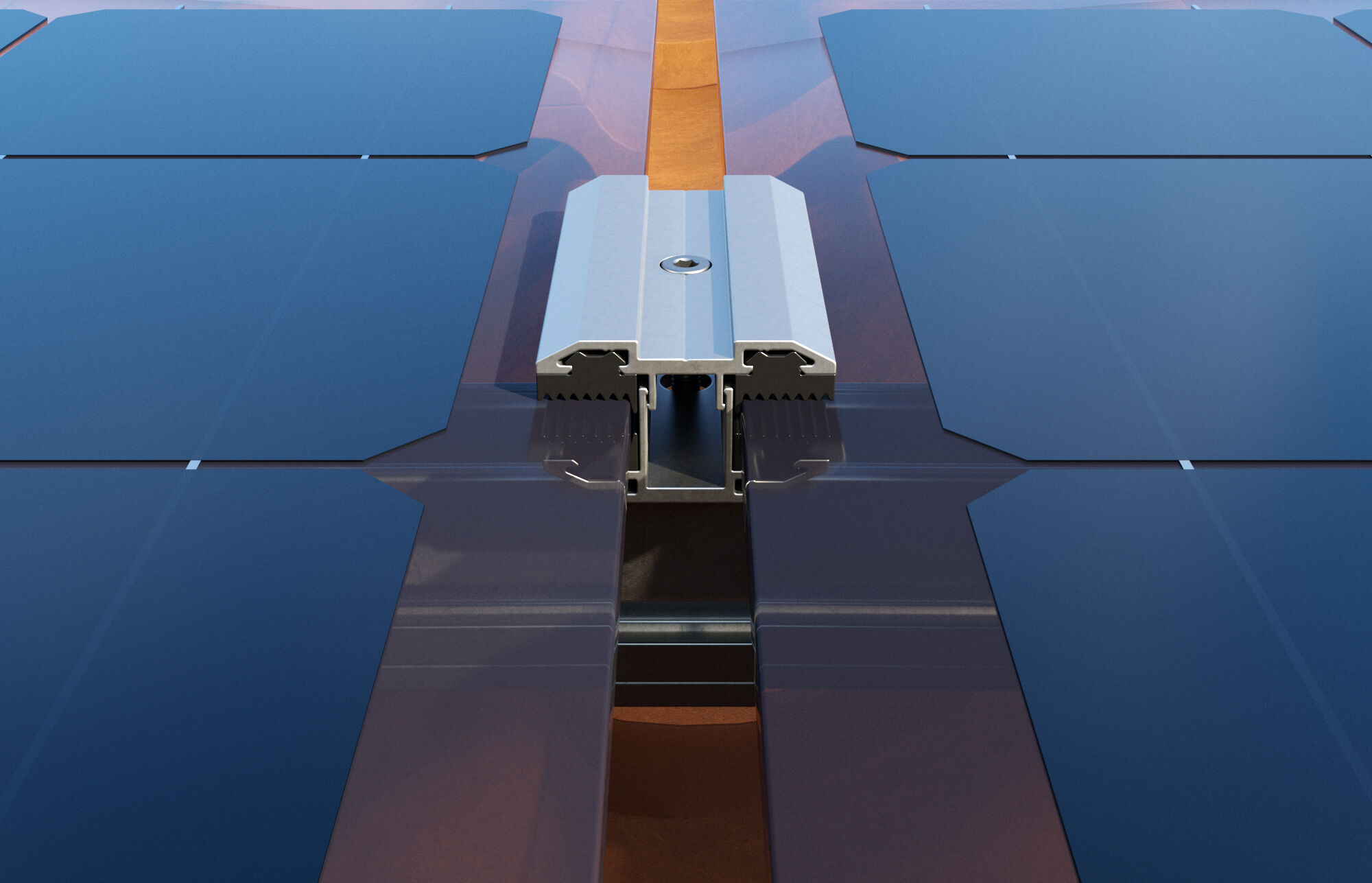

Non-assembled central clamp for frameless glass PV panels.

Advantages

The MCG clamp is available in two thickness variants to secure glass PV panels from 5.5 to 8.5 mm thickness and in different lengths to limit panel deflection.

MCG is the non-assembled clamp for fixing frameless glass PV panels. The MCG clamp is available in different lengths and in two thickness variants to adapt to different models of frameless glass PV panels. Compatible with Allen screws and FCN AL nuts.

Properties

AW 6060 T66 aluminium alloy MC G clamps in accordance with EN 755-2:2013.

Accessories

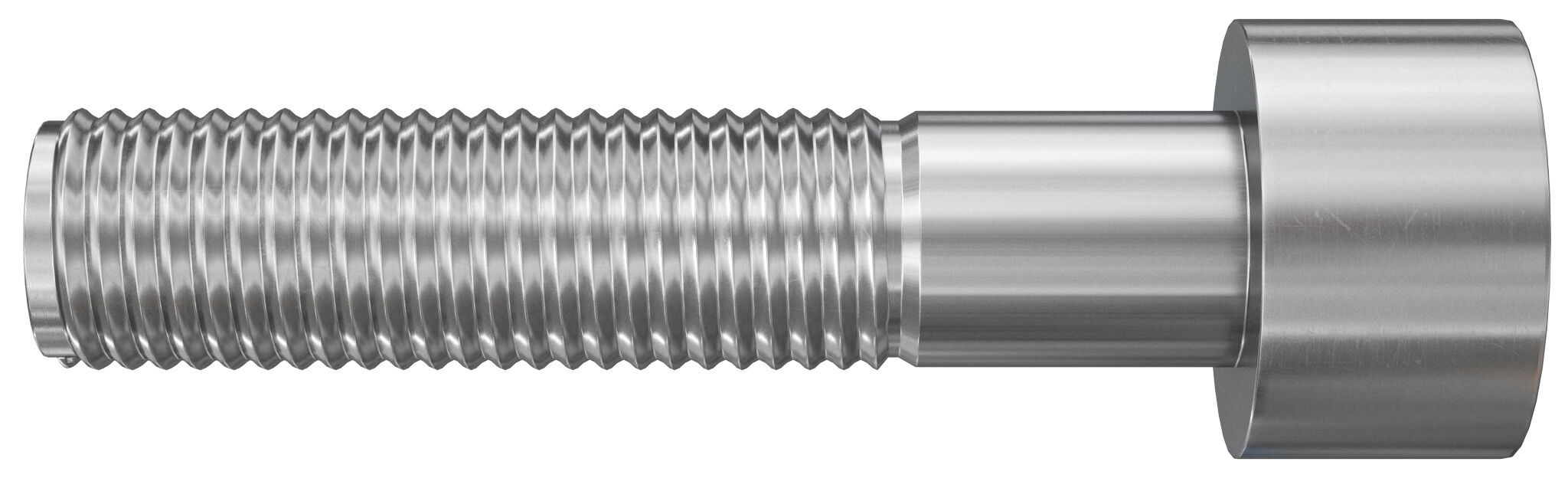

TCEI M8 x 35 A2

Module thickness ( d_p )	5.0 - 6.2 mm
Installation torque ( T_inst )	10 Nm
Amount	20 pcs.
GTIN (EAN-Code)	8001132056363
