Art.-No. 505615
GTIN (EAN-Code): 8001132013410
fischer butyl adhesive tape CG INT
Product variants
Download of image data
Top Features
Double-sided adhesive tape consisting of a highly adhesive butyl compound, protected by a reinforced aluminium film.
Resistant to UV, ammonia, salts and oxidation.
It ensures an optimal grip, long-term tightness and it helps to avoid water infiltrations.
Accessories
Art.-Nr. 569374

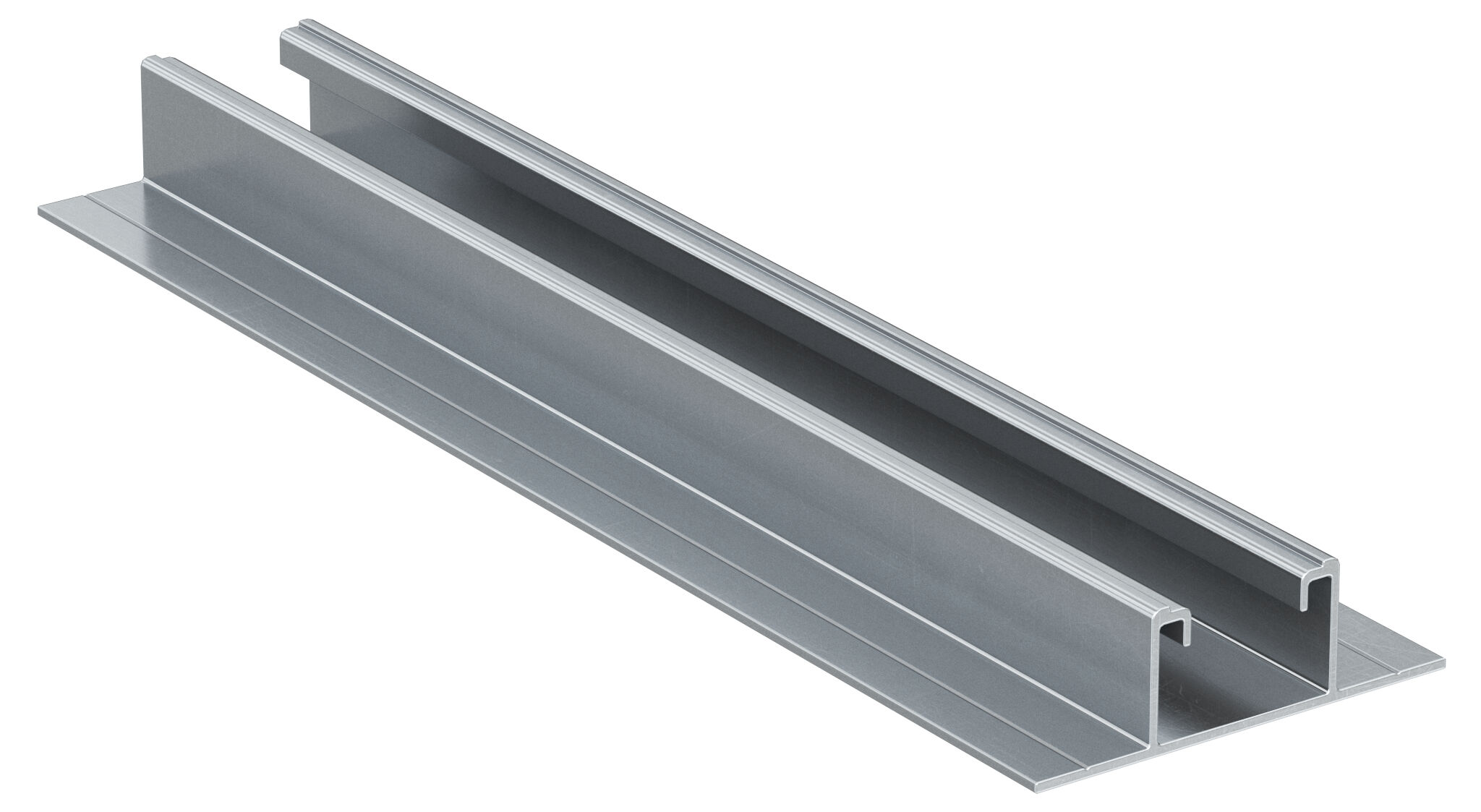

SolarMetal P H25 4.85 m AL
View product
Art.-Nr. 567412
SolarMetal L H25 4.45 m AL
View product
Art.-Nr. 512195
SolarMetal P H25 400 mm AL
View product
Art.-Nr. 559873
SolarMetal P H25 4.45 m AL
View product
The advantages / Product description
Butyl adhesive tape for joints between Solar rails.
Advantages
The CG INT butylic adhesive tape is easy to apply and is extremely flexible, allowing a perfect adherence to any surface.
Butyl adhesive tape for the installation of photovoltaic systems. It allows to create joints between Solar rails, avoiding corrosion of the metal.
Properties
Adhesive butyl compound reinforced with polyester mesh. Aluminium film on the top.
Application and approval
Applications
Suitable for:
Trapezoidal sheet roof systems
For connection with:
SolarMetal rail
SolarFlat rail
Approvals
TUV - R 60154136
Assembly instruction
Functionality
Place a layer of CG INT butyl adhesive tape between the rail and the trapezoidal metal sheet.
Ensure that the butyl adhesive tape is turned so that the aluminium layer covering is on the side where the rail rests.
Technical data
Length
(
l
)
10
m
Width
(
B
)
80
mm
Thickness
(
S
)
1
mm
Piece per carton
2
pcs
Amount
1
pcs
GTIN (EAN-Code)
8001132013410
Documents for download
Approvals and Certificates
Sales materials
Certificate
pdf,
TUV - R 60154136
TUV Certificate
Valid from 11/01/2021
to 11/01/2026
