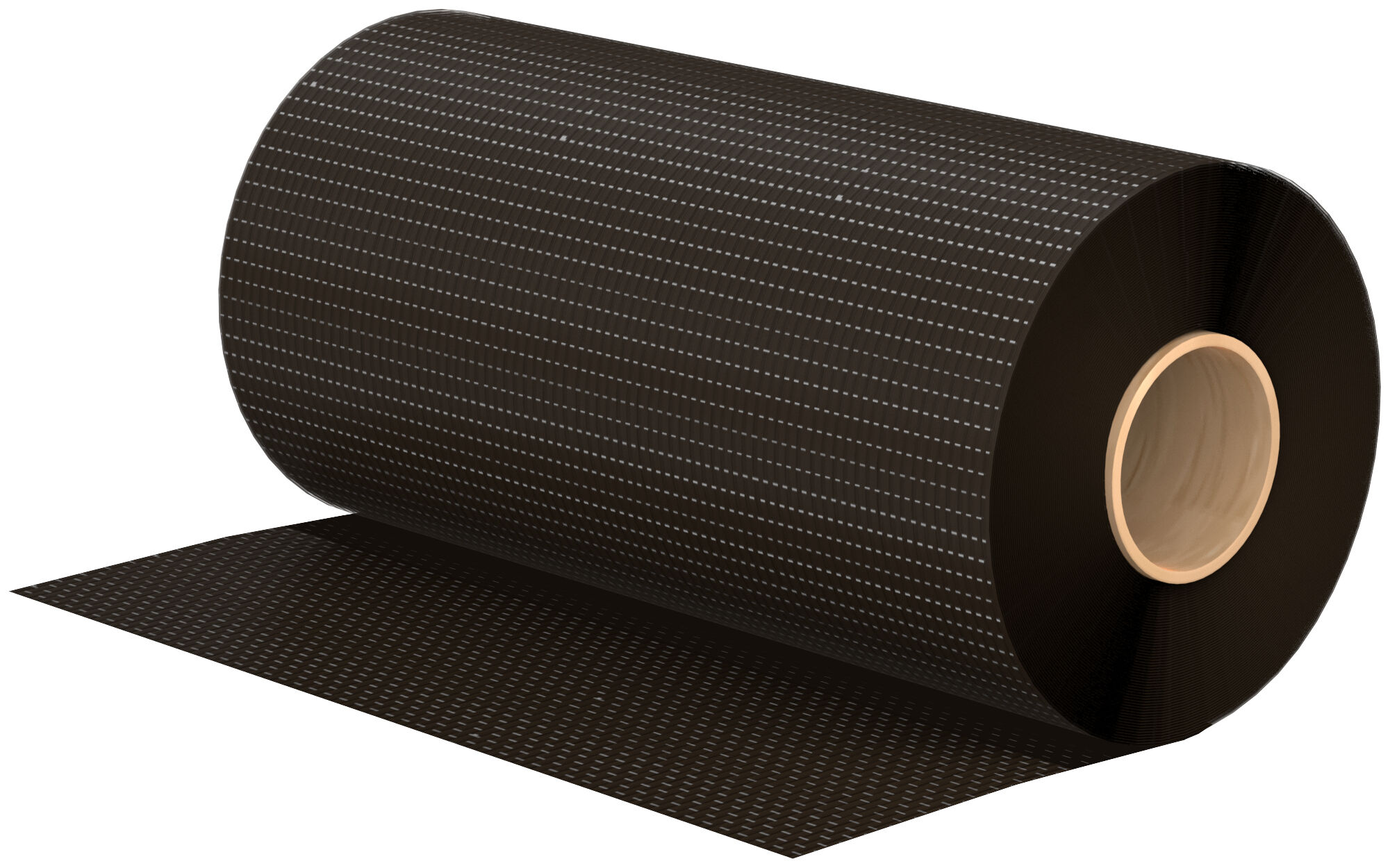

Available in two variants with different area densities (300 g/m2 and 600 g/m2 area densities)
Suitable for the strengthening of convex concrete members
Strengthening without singificantly increasing the dead-load of existing structures
Different coil widths available for cost-efficient design and flexibility
High corrosion resistance
Suitable for the homogeneous strengthening of large area slabs
Certificates
System component of the fischer C-Fiber Force Strengthening System with ICC-ES evaluation report (ESR-4774)
Anwendung und Zulassung
Applications
Structural Strengthening of reinforced concrete and pre-stressed concrete members
Enhancing the tensile reinforcement area of existing concrete members
Buildings, infrastructure and park decks
Beams, columns, concrete slabs, walls
Wall and ceiling openings
Building materials
Approved for:
Concrete
Concrete hollow blocks
Applicable for:
Masonry
Es gelten die Details (Baustoffe, Lasten, etc.) der ggf. verfügbaren Zulassung. Weitere Dokumente finden Sie im Download Center.
Zulassungen
ESR-4774
Montageanleitung
Functionality
FRS-W unidirectional carbon fibre fabrics are used for the strengthening of concrete members in combination with the ambient temperature curing saturating resin FRS-CF
The fabric is applied in either dry or wet layup application technique and cured on site
