Art.-No. 552363

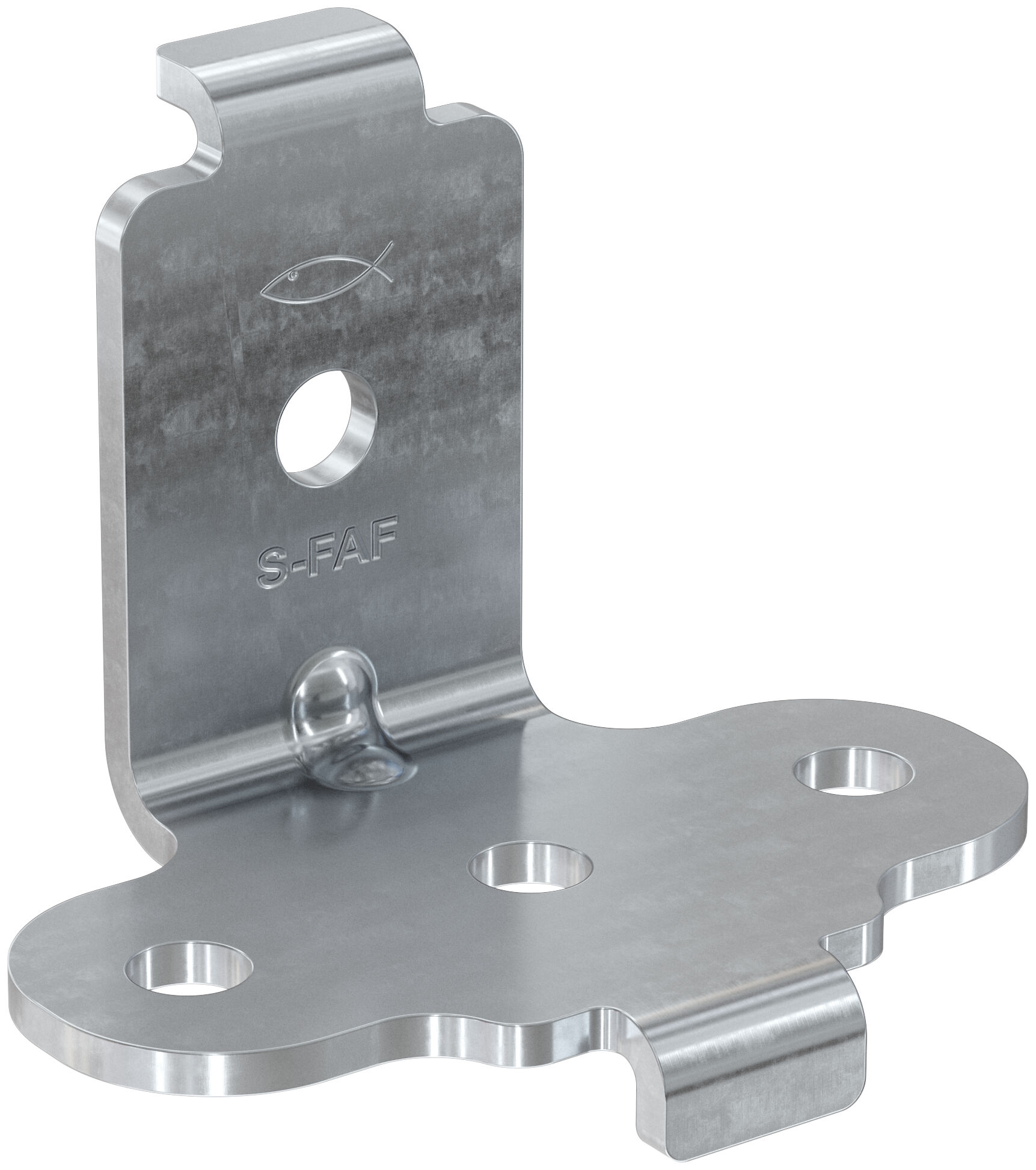

fischer 90° angle connector S-FAF

Top Features

Perforated wings allow an easy and quick installation of the brace connectors S-VA and S-VB on the angle connector S-FAF.
The seismic angle connector allows an easy and flexible installation of the brace connectors S-VA and S-VB at different angles.

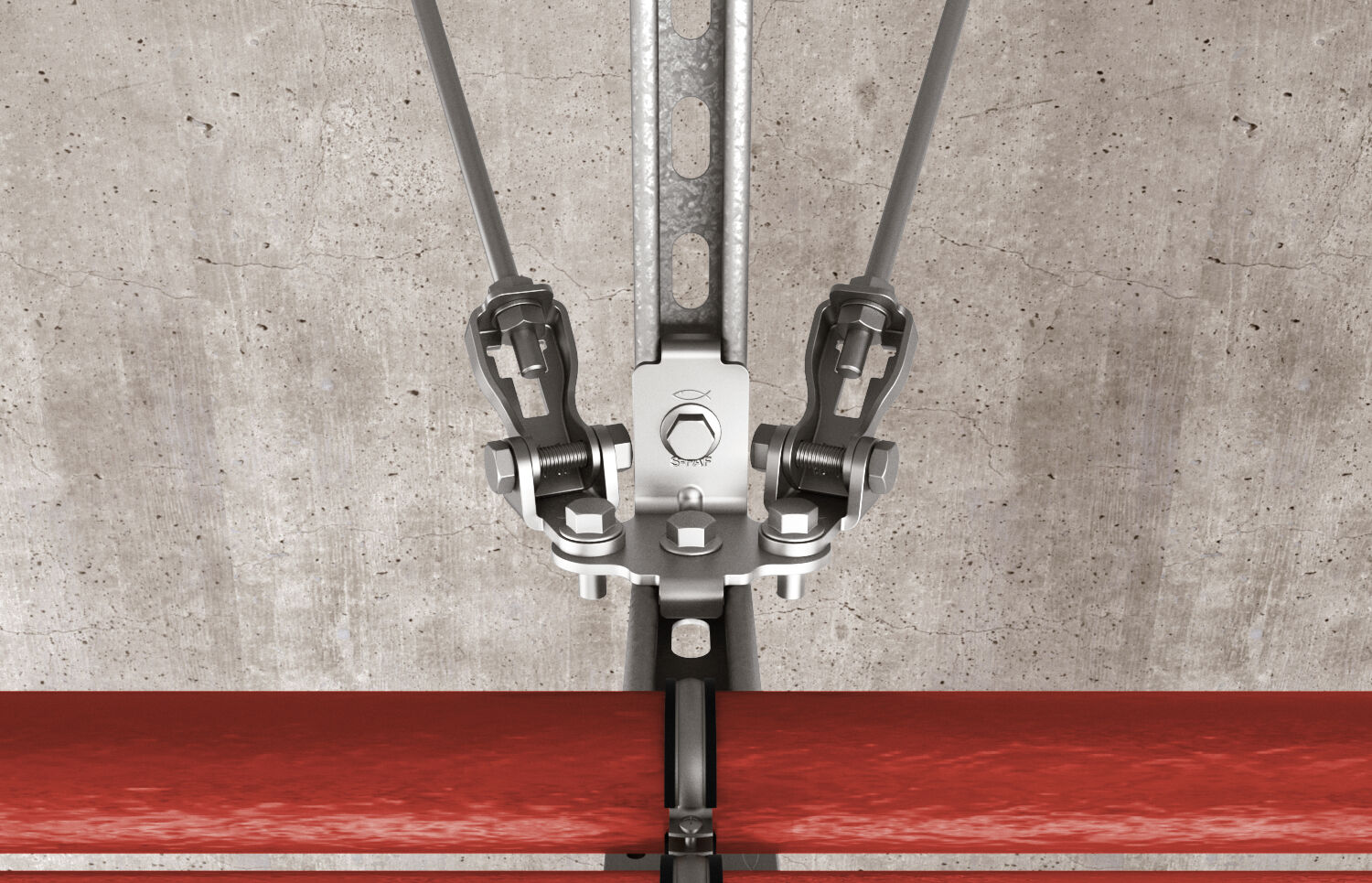

90° angle connector to connect two FUS channel profiles and install seismic bracing elements S-VA and S-VB.

Advantages

Perforated wings allow an easy and quick installation of the brace connectors S-VA and S-VB on the angle connector S-FAF.
The seismic angle connector allows an easy and flexible installation of the brace connectors S-VA and S-VB at different angles.

The 90° angle connector S-FAF allows a quick and easy connection of FUS channel profiles as well as the flexible installation of the brace connectors S-VA and S-VB at different angles.

Properties

Material: steel S275JR (material no. 1.0044) acc. to DIN EN 10025-2
Zinc plating: electro zinc-plated, min. 5 µm

Amount	10 pcs.
GTIN (EAN-Code)	8001132098660

fischer 90° angle connector S-FAF

The advantages / Product description

Application and approval

Assembly instruction

Technical data
