Art.-No. 79401

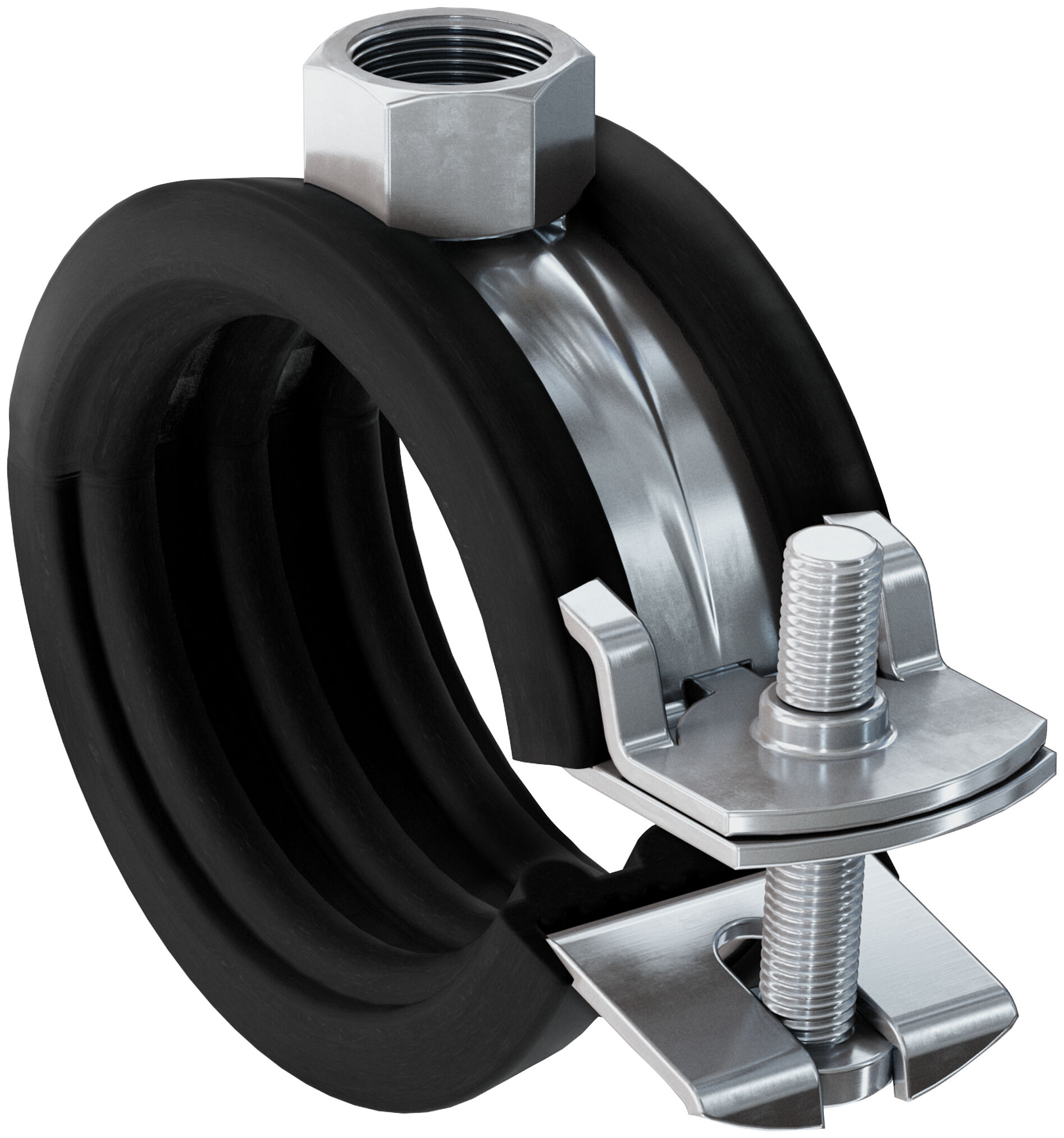

fischer Hinged pipe clamp FGRS Plus 15 - 19

The one-piece hinged pipe clamp with rapid-locking mechanism

Advantages

The rapid-locking mechanism allows a fast and time-saving installation.
The tight fit of the sound insulation insert prevents it from falling out when inserting the pipe.
The safety latch fastening guarantees pipe installation without the clamp springing open.
The combination connecting nut with M8/M10 thread on the FGRS Plus M8/M10 allows optimised mounting choices.
The screw's combination cross-drive thread allows flexibility during the installation process.
The compact construction of the pipe clamp enables a simple post-installation insulation.

The fischer hinged pipe clamp FGRS Plus with sound insulation insert for fixing pipelines. The rapid-locking mechanism allows for fast, time-saving installation. Connecting nut with combination thread M8 / M10 for holding threaded rods or hanger bolts.

Properties

Material: steel DC01 (material no. 1.0330) acc. to DIN EN 10130
Zinc plating: electro zinc-plated
Connecting nut: resistance welded, SW 13
Locking screw: flat head screw with combination recessed head
Material sound insulation insert: SBR/EPDM; chlorine-free; silicone-free
Sound insulation: for DIN 4109
Temperature range: -40 °C to +100 °C
Hardness: 55 ± 5° ShoreA
Fire behaviour: DIN 4102: Class B2

Clamping range ( D )	15 - 19 mm
Thread ( A )	M8
Size	3/8 in
Height ( H )	40 mm
Width x thickness clamp band ( b x s )	20 x 1.25 mm
Height ( Z )	24 mm
Locking screw	M5
Amount	100 pcs.
GTIN (EAN-Code)	4006209794012
