The heavy-duty fixed point clamp without sound

Fixed point clamp FFPS

Name: Fixed point clamp FFPS
Brand: fischer

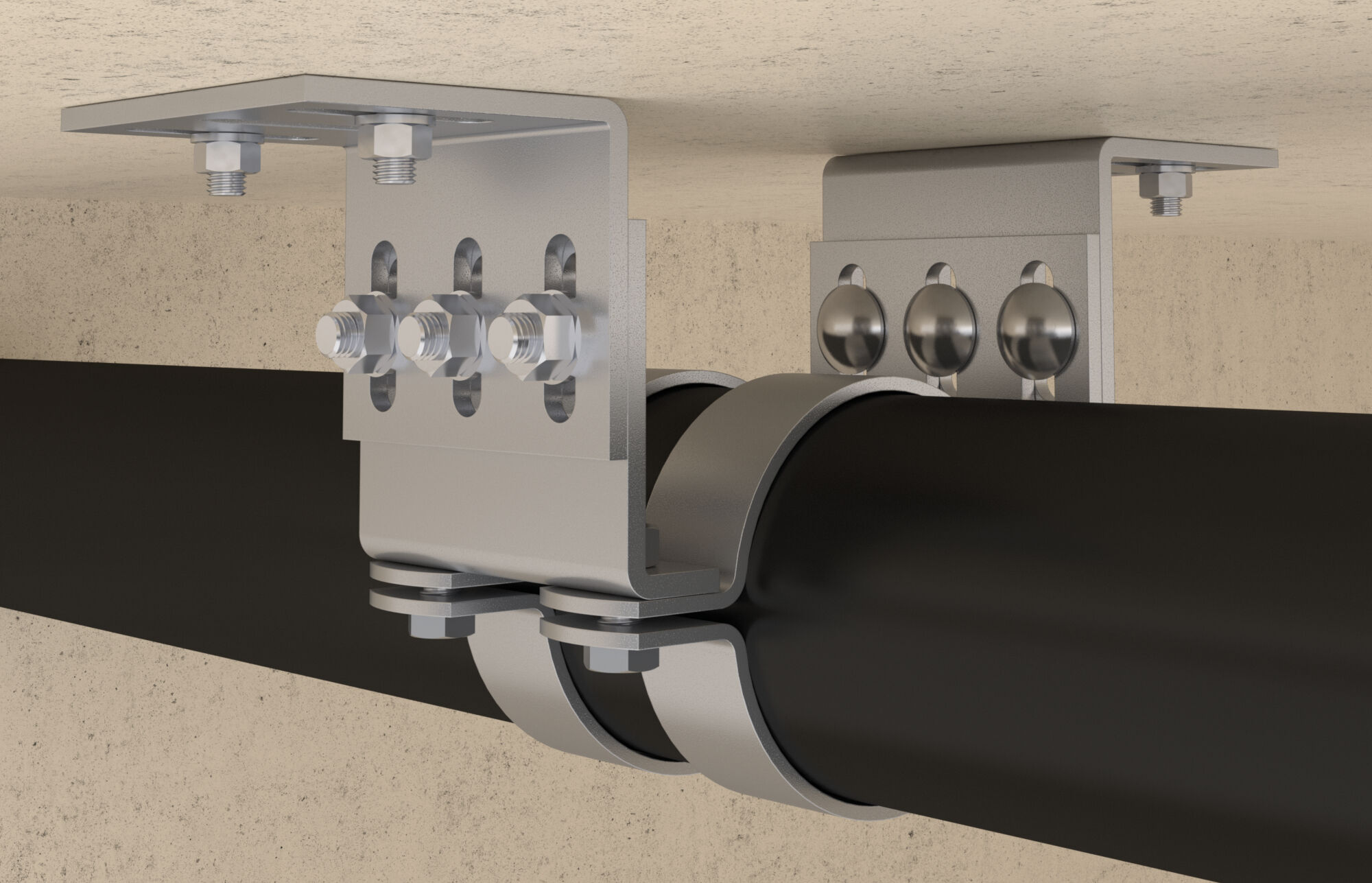

The heavy-duty fischer fixed point clamp FFPS without a sound insulation insert is suitable for orienting the thermally induced pipe expansions in the desired direction in the case of heating pipes and refrigeration pipes. It prevents undesired movements between the pipes and structures. The fixed point clamp FFPS can be mounted to the fixed point saddle FFPK as a single unit or as multiple units. The galvanized zinc version is suitable for installation in buildings.

Product variants

Download of image data

Product variants

9 Product variant (s)

Size

Clamping range

Width

Locking screw

Width x thickness clamp band

Tightening torque

Viewed 9 of 9 variant (s)

Size	2 in
Clamping range ( D )	56 - 61 mm
Width ( B )	137 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209485101

Size	2 1/2 in
Clamping range ( D )	75 - 80 mm
Width ( B )	156 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209485118

Size	3 in
Clamping range ( D )	88 - 93 mm
Width ( B )	170 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209485125

Size	4 in
Clamping range ( D )	108 - 115 mm
Width ( B )	191 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209485132

Size	5 in
Clamping range ( D )	133 - 140 mm
Width ( B )	217 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209486603

Fixed point clamp FFPS

Product variants

The advantages / Product description

Application and approval

Documents for download

Size	159 - 166 in
Clamping range ( D )	159 - 166 mm
Width ( B )	243 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209486627

Size	6 in
Clamping range ( D )	167 - 172 mm
Width ( B )	250 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209486634

Size	8 in
Clamping range ( D )	219 - 225 mm
Width ( B )	303 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209486641

Size	10 in
Clamping range ( D )	267 - 274 mm
Width ( B )	351 mm
Locking screw	M12
Width x thickness clamp band ( b x s )	40 x 4.0 mm
Tightening torque ( T_inst )	60 Nm
Amount	1 pcs.
GTIN (EAN-Code)	4006209486658
