Variable connection of FMP massive profiles to each other and to the substrate

Variable bracket FMVB

Name: Variable bracket FMVB
Brand: fischer

fischer variable brackets are optimal connectors from channel to channel as well as channel to substrate or steel work. The connection to the FMP massive profile is made throughout with the fischer FMHB hammer-head push connector or through beam clamps and anchors to the substrate. The hot-dip galvanised version with high layer thickness is suitable for outdoor installations and in corrosive environments.

Product variants

Download of image data

Product variants

4 Product variant (s)

Length

For steel beam width

Width

Height

Thickness

Amount

Viewed 4 of 4 variant (s)

Advantages

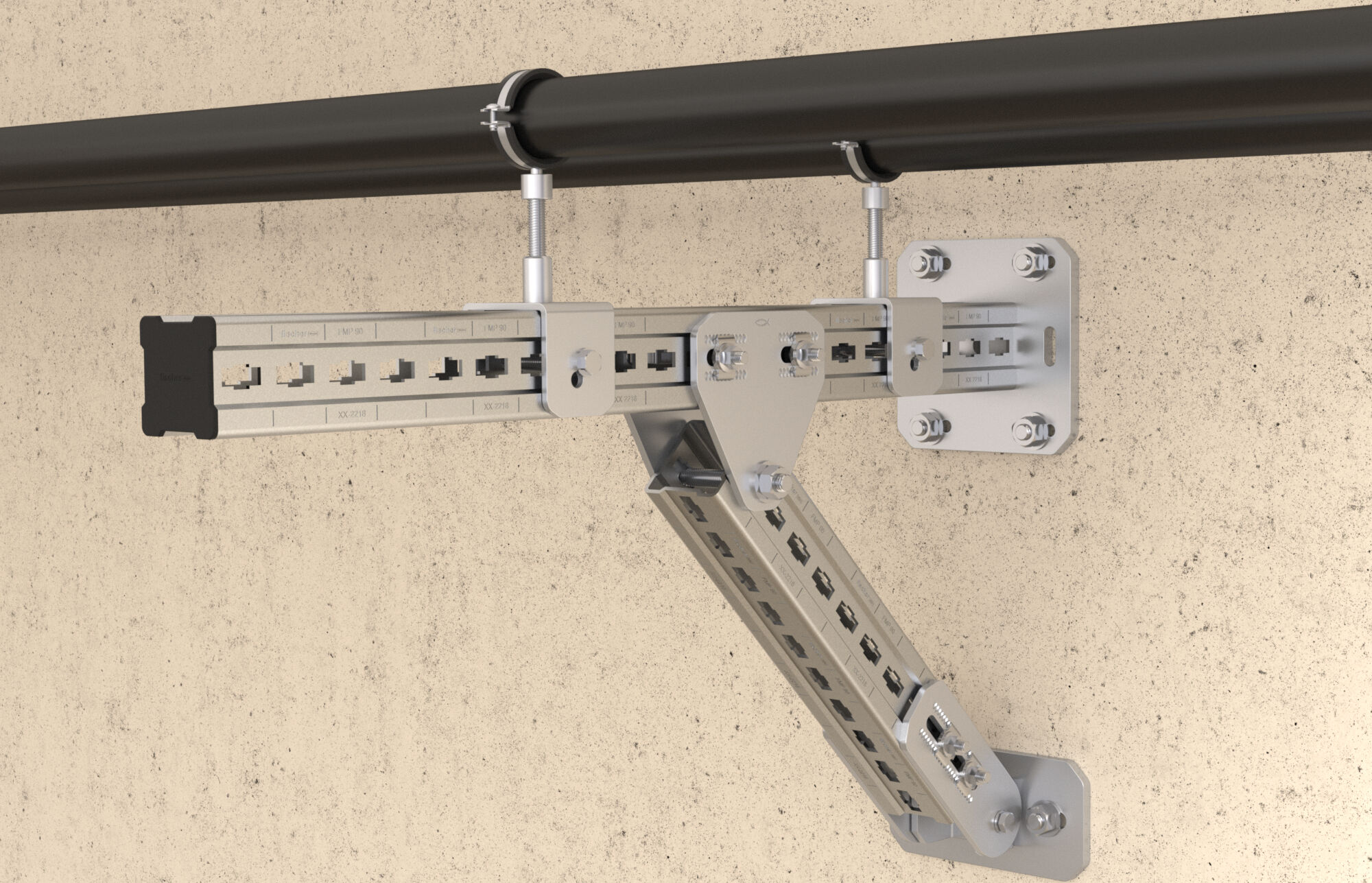

The variable construction elements allow stiffening or support of the profile construction at any angle and are therefore suited for versatile use.
The stable design and the size graduation of the FMVB base plates offer the optimum fixing option depending on the construction and ensure a secure hold.
The FMVB variable bracket with slot and grating to accommodate the toothed plate of the FMHB hammer-head push connector allows optimum adjustment of the supported profile for simple and safe installation.
Supplying the FMVB articles as a set with the necessary screw, hexagonal nut and washer ensures error-free installation.

Properties

Material: steel S235JR (material no. 1.0038) acc. to DIN EN 10025-2
Zinc plating: hot-dip galvanised, acc. to DIN EN ISO 1461
Material: steel grade 8.8

Length ( l )	175 mm
For steel beam width	—
Width	—
Height ( H )	180 mm
Thickness ( S )	8 mm
Amount	4 pcs.
GTIN (EAN-Code)	4048962338973

Length ( l )	250 mm
For steel beam width	100 - 160 mm
Width ( B )	125 mm
Height	—
Thickness ( S )	12 mm
Amount	2 pcs.
GTIN (EAN-Code)	4048962338980

Length ( l )	330 mm
For steel beam width	180 - 240 mm
Width ( B )	125 mm
Height	—
Thickness ( S )	15 mm
Amount	2 pcs.
GTIN (EAN-Code)	4048962338997

Length ( l )	400 mm
For steel beam width	240 - 300 mm
Width ( B )	125 mm
Height	—
Thickness ( S )	15 mm
Amount	2 pcs.
GTIN (EAN-Code)	4048962339000
