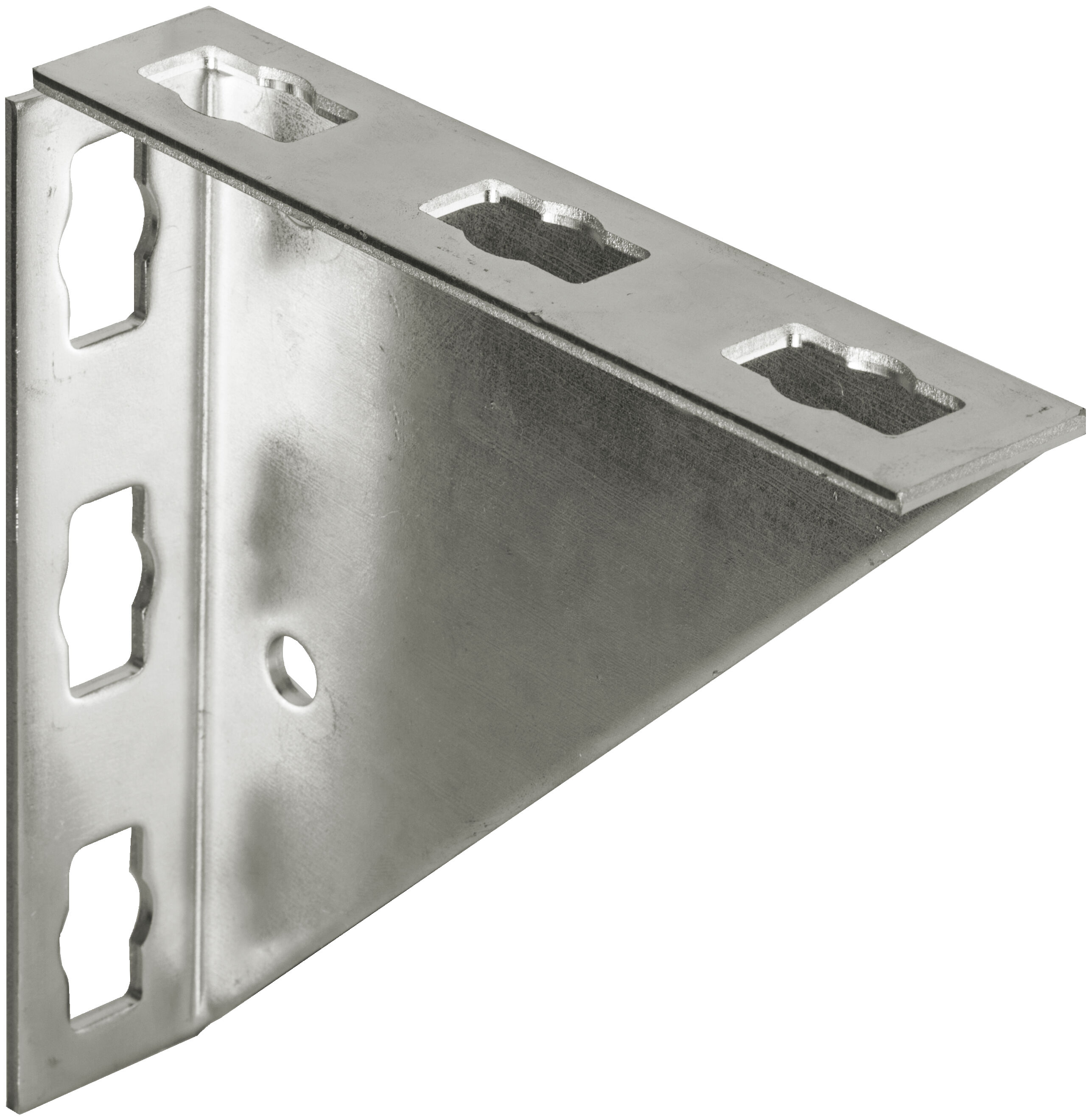

fischer Angle bracket PWK 200/200

Name: fischer Angle bracket PWK 200/200
Brand: fischer

CAD Data

Download of image data

Top Features

Easy creation of channel constructions in connection with FUS channels and PFCN 41.
Quick assembly by 90° rotation of the push-through connector PFCN 41 in the channel.

Construction element - Angle bracket PWK

Advantages

The stable angle bracket ensures a supporting structure with a very high level of stability and safety.
Simple creation of channel constructions in connection with FUS channels and PFCN 41.
Quick assembly by 90° rotation of the push-through connector PFCN 41 in the channel.

The fischer angle bracket PWK is suitable for the reinforcement of the fischer mounting channel FUS and for lateral fixing with the substrate. The angle bracket provides a supporting structure with really high stability thanks to its design.

Properties

Material: steel DD11 (material no. 1.0332) acc. to DIN EN 10111
Zinc plating: electro zinc-plated

Max. recommended tension load for FUS 2,0 mm( N_rec )	5 kN
Max. recommended tension load for FUS 2,5 mm( N_rec )	7 kN
Max. recommended shear load( V_rec )	7 kN
Tightening torque for screw grade ≥ 8.8( T_inst )	40 Nm
Packaging	Folding box
Amount	15 pcs
GTIN (EAN-Code)	4048962225099
