fischer Frame fixing SXR 10 x 100 SS K with hexagonal screw

Name: fischer Frame fixing SXR 10 x 100 SS K with hexagonal screw
Brand: fischer

Product variants

Download of image data

Top Features

Low anchorage depth saves time and costs.
ETA approval in concrete and masonry.
Plug expands in solid building materials.
The plug anchors itself in the cavity in perforated building materials.
With safety screw with hexagonal head.

The efficient with short expansion element

Advantages

The special functioning allows for use in solid and hollow building materials with an anchorage depth of just 50 mm, ensuring an economical fixing.
The ETA assessment covers use in a range of solid and hollow building materials, and guarantees a secure fixing.
The specially developed combination of plugs and screws ensures the very best handling. The plug has a noticeable hold, making installation more convenient.

The fischer frame fixing SXR-SS is a plug made of high-quality nylon along with the fischer hexagonal screw. Due to the special plug geometry, the SXR can be used in solid and hollow building materials. Due to the low anchorage depth of only 50 mm, the frame fixing can be handled in an especially cost-effective manner for multiple fixing of non-load-bearing systems. The fischer frame fixing SXR-SS is particularly recommended with the hexagonal screw and moulded washer for fixing metal constructions.

Applications

Façade, ceiling and roof substructures made of wood and metal
Windows
Gates and doors
Wardrobes
Kitchen hanging cabinets
Squared timbers
Beams
TV consoles
Wall covering
Metal brackets
Metal supports
Cable ducts
Cable trays

Building materials

Approved for:

Concrete ≥ C12/15
Vertically perforated brick
Hollow blocks made from lightweight concrete
Perforated sand-lime brick
Solid sand-lime brick
Aerated concrete
Solid block made from lightweight and normal weight concrete
Solid brick
Thermal insulation blocks

Suitable for:

Natural stone with dense structure
Solid panel made from gypsum

You can find detailed information on building materials in the registration document.

Approvals

ETA-07/0121
DoP No. 0329

Functionality

The SXR is suitable for push-through installation.
The SXR expands in solid building materials.
In perforated building materials, the loads are transferred in the block fillet area.
With vertically perforated bricks, only use rotary drilling (no impact drilling).
Recommended for the fixing of metal constructions
Countersunk head screws are recommended for fixing metal constructions.

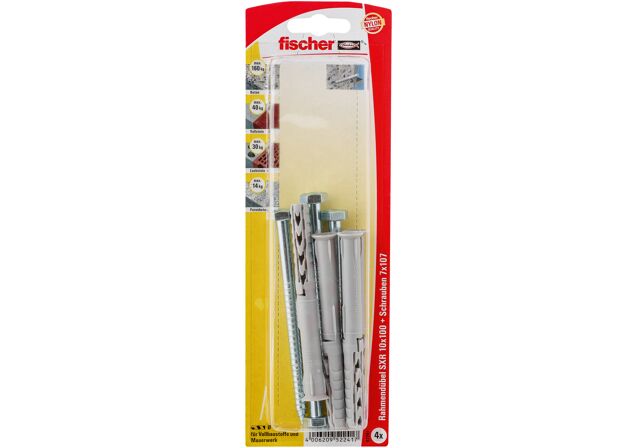

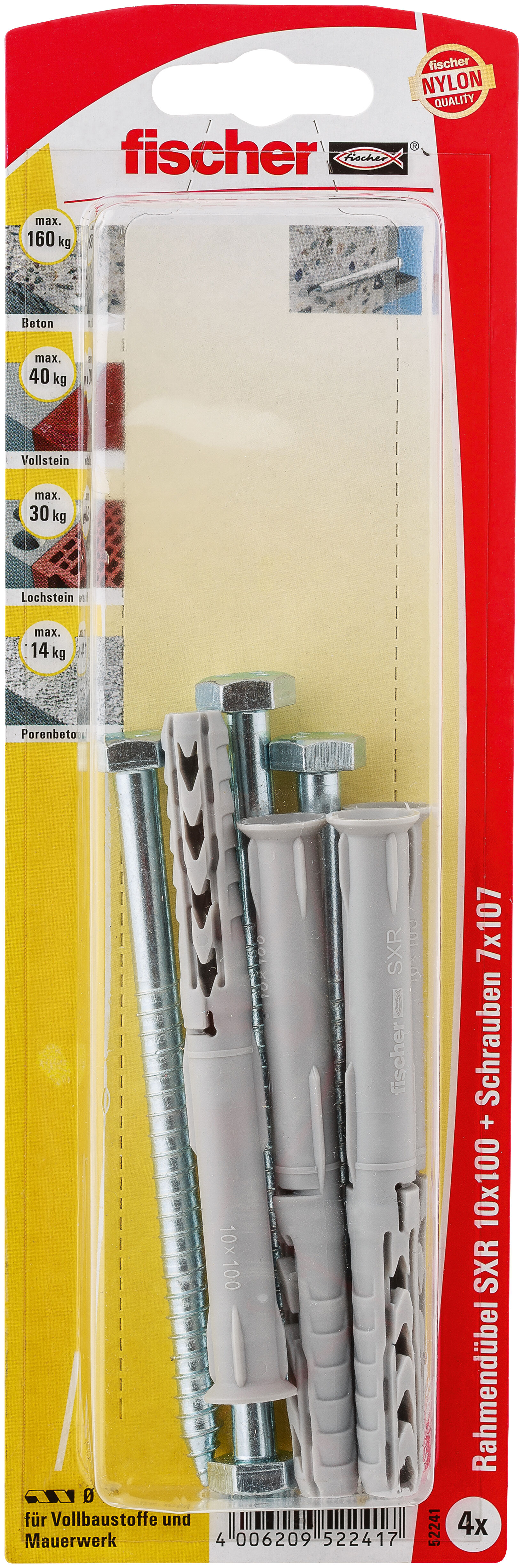

Mounting Strip 1 Picture

1 / 5

ETA-approval
Drill diameter ( d₀ )	10 mm
Min. drill hole depth for through fixings ( h₂ )	110 mm
Anchor length ( l )	100 mm
Drive	SW 13
Contents	4 x Frame fixing SXR 10 x 100 4 x Hexagon head wood screw 7.0 x 105, zinc-plated
Packaging	Blister card
Amount	4 pcs
GTIN (EAN-Code)	4006209522417
