Universal intumescent wrap strip for sealing combustible services

Intumescent Wrap Strip FiWS

Name: Intumescent Wrap Strip FiWS
Brand: fischer

fischer intumescent Wrap Strip - FiWS is a flexible, intumescent graphite based synthetic compound strip which has been designed to be installed around non metallic pipes, conduits, trunking and cabling in both vertical and horizontal applications. Tested in accordance with ASTM E 84 (UL723) & ASTM E 814 (UL1479) the fischer FiWS can provide up to 4 hours fire resistance on a wide range of applications. The FiWS is asbestos and halogen free, and is unaffected by oil, fungus or vermin.

Product variants

Download of image data

Product variants

2 Product variant (s)

Dimensions

Amount

GTIN (EAN-Code)

Viewed 2 of 2 variant (s)

Functionality

FiWS is a flexible, intumescent graphite-based synthetic compound strip, which has been designed to be installed in both vertical and horizontal applications.

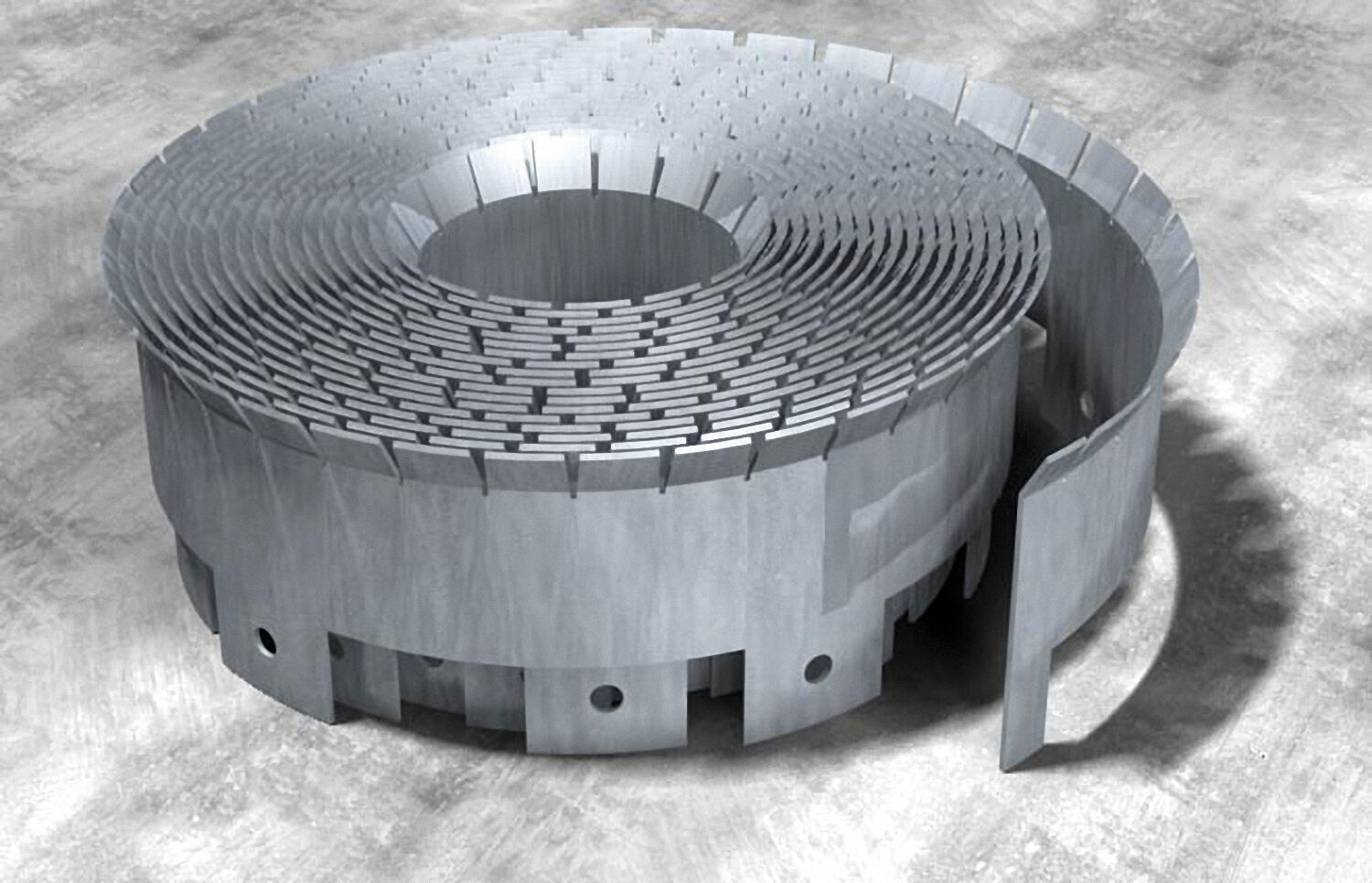

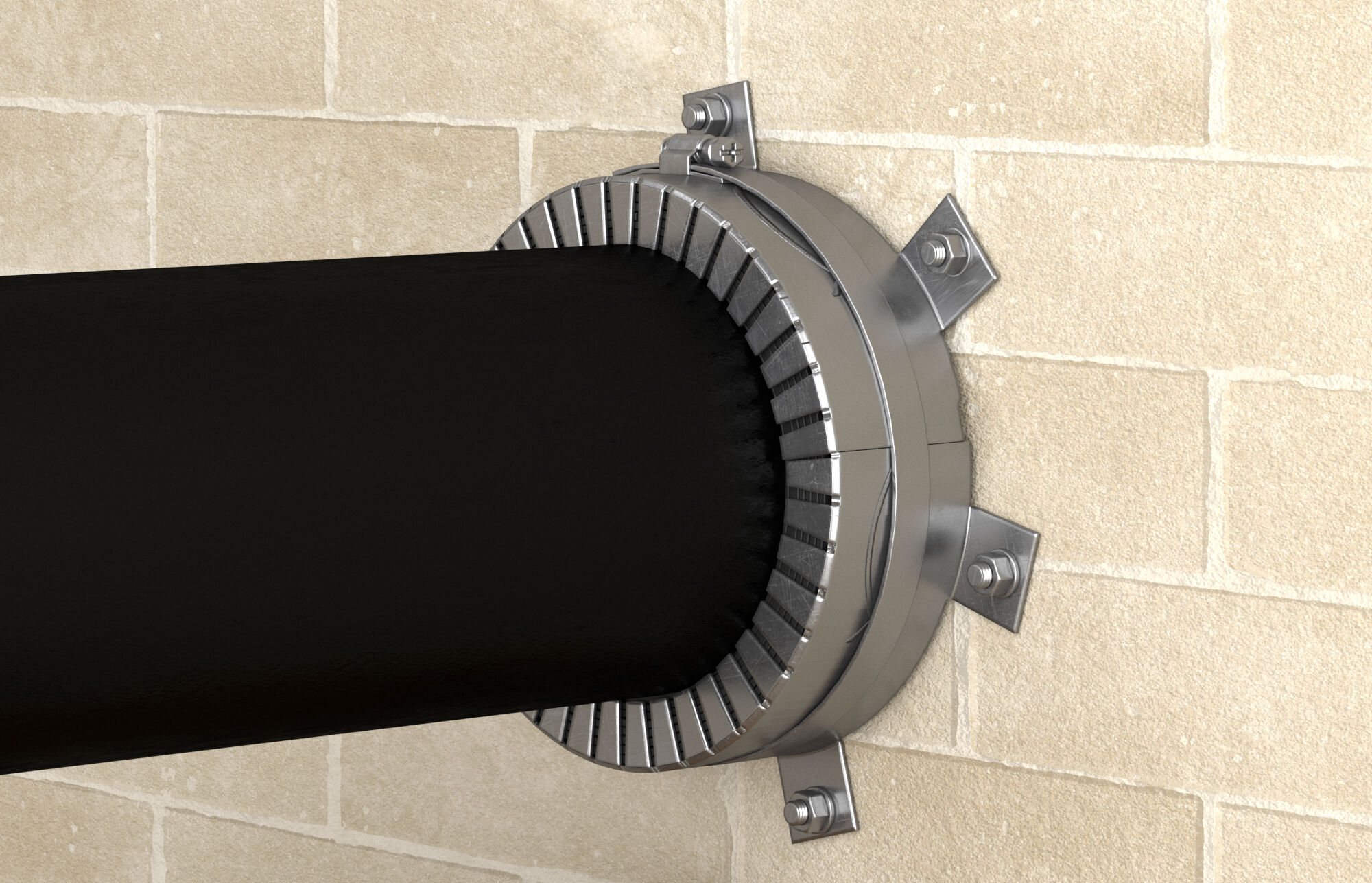

FiWS has been developed as a PRE or cast-in FireStop solution, and has been designed to work with the fischer Universal Collar for retro fitting or surface mounted applications.
For large openings, the FiWS can be used in conjunction with the FFSC.

Mounting Strip 1 Picture

1 / 7

1
2
3
4
5
6
7

Dimensions ( B x L x H )	51 mm x 15 m / 2“ x 50 ft
Amount	1 pcs.
GTIN (EAN-Code)	4048962246414

Dimensions ( B x L x H )	50 mm x 6 mm x 5.48 m / 2˝x 1/4˝ x 18˝
Amount	1 pcs.
GTIN (EAN-Code)	4048962209020
