MST, analog caliper
Testing and measuring equipment
Art.-No. 802575
GTIN (EAN-Code): 4048962347470

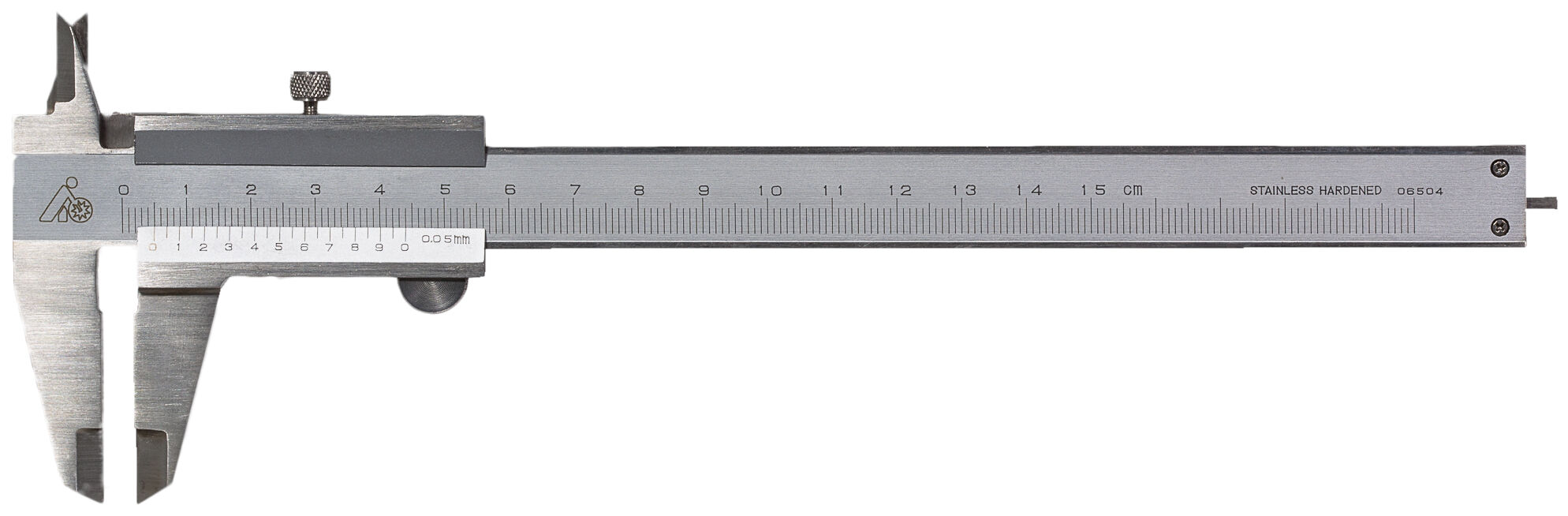

fischer caliper analog MST
Variantes de productos
Download of image data
Top Features
Well-tried measuring tools for exact measures of drill hole geometries.
With Nonius scale.
Robust design.
With impact resistant box.
Ensures an optimal drill hole quality.
Las ventajas / descripción del producto
Analog caliper for the measuring the drilling depth hv and cylindrical diameter of the drill hole d0.
Advantages
Enable fast, easy and economical quality control of the created undercut holes.
Represent the established method of measuring drill hole dimensions for checking compliance with tolerances.
The caliper gauge with depth gauge for exact determination of the drill hole dimensions.
Solicitud y aprobación
Applications
For the quality control of undercut holes for fischer Zykon panel anchors FZP II
Ventilated rainscreen façades
Façade panels
Building materials
Natural stone (≥ 20mm)
Artificial concrete panels (e.g. GFRC, UHPC, etc.)
Ceramics
Porcelain stoneware
Fiber cement
HPL panels
Solid surface panels
Thin panel materials (≥ 8 mm)
* Puede encontrar información detallada sobre materiales de construcción en el documento de registro.
Instrucciones de montaje
Functionality
Quality control of the created undercut holes by measuring the important parameters such as cylindrical diameter, undercut diameter and drilling depth
Datos técnicos
Useable Material
all
Adapted for
all materials and façade anchors
GTIN (EAN-Code)
4048962347470
